"Cable Bend" elbow

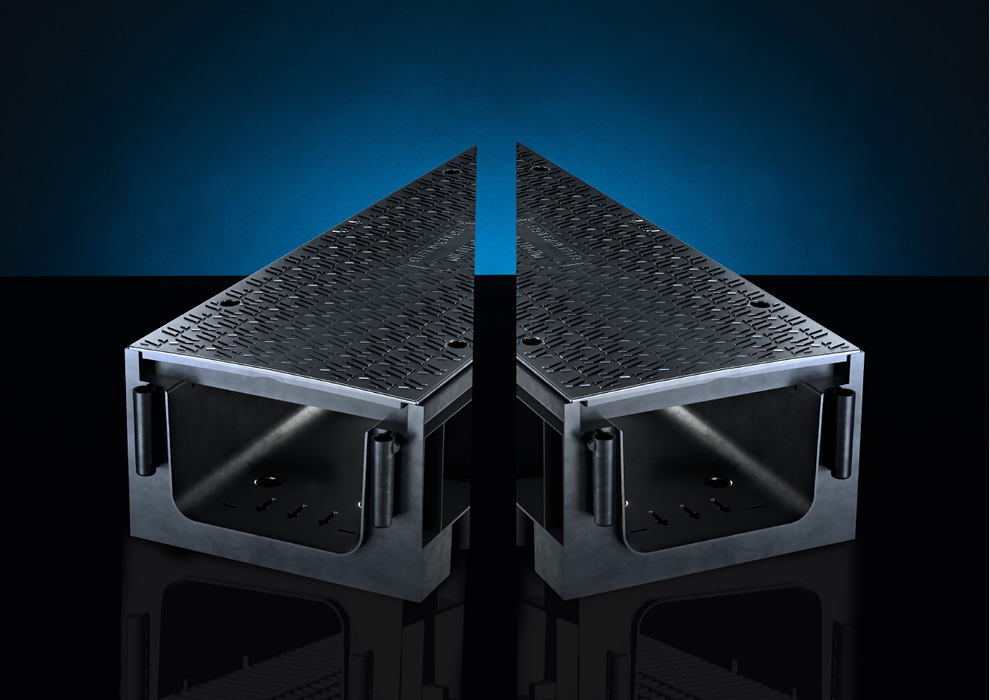

The 15° “Cable Bend” elbow, compatible with the “Cable Duct Gen³”, allows the cable duct run to be routed in 15-degree increments and can be used regardless of the direction of installation by means of intermediate connectors, which allow for use on both sides.
Technical Data Cable Bend 15° - Size I
- Length: 226 mm
- Width (inside / outside): 100 mm/233 mm
- Height (inside / outside): 155 mm/248 mm
- Weight: 2.05 kg
- Material: PP Copolymer (glass-fiber reinforced, UV-stable, flame-retardant)
- Fire protection classification: DIN EN 13501-1: K1 pursuant to DIN 53438 part 2; DIN EN ISO 11925-2; DIN EN 13501-1
- Fire resistance: DIN EN 60695-2-11 / test temperature: 550 °C
- Temperature resistance: DIN EN ISO 75-2 (method B): -20 °C to +150 °C
- Load bearing capacity: Class A15 (9 kN) pursuant to DIN EN 124–1/ DIN EN 1433
- Electrical properties: DIN EN 60243-1 / VDE 0303-21/ dielectric strength: > 40 kV
- Application: the connecting plugs included in the set allow for flexible changes in direction within the cable duct for left and right-hand bends of 15°, 30°, 45°, 60°, 75° or 90°
Technical Data Cable Bend 15° - Size II
- Length: 245 mm
- Width (inside / outside): 250 mm/383 mm
- Height (inside / outside): 155 mm/248 mm
- Weight: 2.66 kg
- Material: PP Copolymer (glass-fiber reinforced, UV-stable, flame-retardant)
- Fire protection classification: DIN EN 13501-1: K1 pursuant to DIN 53438 part 2; DIN EN ISO 11925-2; DIN EN 13501-1
- Fire resistance: DIN EN 60695-2-11 / test temperature: 550 °C
- Temperature resistance: DIN EN ISO 75-2 (method B): -20 °C to +150 °C
- Load bearing capacity: Class A15 (9 kN) pursuant to DIN EN 124–1/ DIN EN 1433
- Electrical properties: DIN EN 60243-1 / VDE 0303-21/ dielectric strength: > 40 kV
- Application: the connecting plugs included in the set allow for flexible changes in direction within the cable duct for left and right-hand bends of 15°, 30°, 45°, 60°, 75° or 90°
